• LED Backlight for Image Stability and Energy Saving
• Luminance Stabilizing System
• Built-in 10 bits LUT (Look-up Table)
• Full Calibration Capability
• Ecological Technology
• Meets worldwide medical safety standards

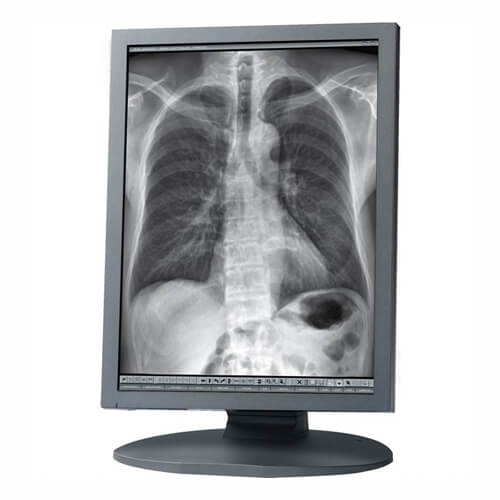

Totoku ME205 20.1" 2MP Diagnostic Medical Display
PRICE REQUEST
Description
Totoku ME205 21.3″ 2MP Diagnostic Display
LED Backlight for Image Stability and Energy Saving
Totoku ME205 LED backlight system provides more stability in images as well as energy saving. Compared to the conventional CCFL backlight models, Totoku ME205 saves about 20% energy and will hold brightness much longer. Additionally, mercury-free LED backlight contributes to reduce the environmental impacts.
Luminance Stabilizing System
Built-in luminance sensor on the Totoku ME205 consistently monitors and accurately stabilizes luminance on the screen to optimize image quality all the time.
Built-in 10 bits LUT (Look-up Table)
The built-in LUT selects the most appropriate 256 shades of grayscale from a palette of 1021 grayscale steps to display finer and smoother grayscale.
Full Calibration Capability
Full calibration capability ensures precise representation of grayscale images.
* Optional calibration kit is required.
Ecological Technology – Considering the Global Environment
JVCKENWOOD is committed to providing high performance display systems that are ecological and environmentally friendly. We strive to create green IT initiatives and be a part of building a clean energy future.
Worldwide Medical Safety Standards
Totoku ME205 meets worldwide medical safety standards.
About Totoku
TOTOKU is a leading worldwide manufacturer of medical image displays and touch panel displays. Its high-end, high-cost-performance medical image displays and touch panels are backed by its unique technology and know-how through decades of solid experience in the industry since 1972.
TOTOKU has supplied computer displays for factories, broadcast stations, workstations, and other applications, and has earned a high marks for its product reliability under harsh conditions and post-installation support, not to mention specialized technologies required for respective fields.
TOTOKU continues to provide high-performance displays for specialized fields by developing leading-edge technologies, while providing consistently optimal customer service.
| Model Name | ME205 | |
|---|---|---|
| LCD Panel | Technology | 20.1-inch Monochrome TFT active matrix |
| Display Area | 408 mm x 306 mm | |
| Pixel Pitch | 0.255 mm x 0.255 mm | |
| Contrast Ratio | 1000:1 (typ) | |
| Maximum Luminance | 1000 cd/m² (typ) 410 cd/m² (Calibrated) | |
| Viewing Angle | 170° horizontal and vertical (typ) | |
| Visual Performance | Resolution | 1600 x 1200 (UXGA) |
| Grayscale | 256 out of 1021 shades of gray | |
| Input Signal | Input Signal | DVI-I, DisplayPort |
| Plug and Play | DDC2B compliant | |
| Input Power Supply | Input | 100V - 240V, 50/60Hz |
| Maximum Power Consumption | 38W Power management feature | |
| Features | Calibration Control | Luminance, Gamma |
| USB | USB 2.0 compliant, Upstream connector (x1), Downstream connector (x2) | |
| Safety Standards | ANSI/AAMI ES60601-1(2005)+A1(2012), CAN/CSA C22.2 NO. 60601-1(2008), CE (EN60601-1, EN60601-1-2), FCC class B, VCCI class B, ICES-3-B, CCC, FDA510(k), RCM, J-Moss, RoHS | |
| Physical Characteristics | Dimensions (W x H x D) | Landscape: 453 mm x 523 mm x 220 mm Portrait: 353 mm x 573 mm x 220 mm |
| Weight | 9.6 kg (with tilt stand) 5.4 kg (without tilt stand) | |
| Tilt Stand | Tilt, swivel, landscape/portrait orientation | |
| Mount | VESA standard (100 mm x 100 mm) | |
| Security Slot | Antitheft security slots (Panel and tilt stand) | |
| Accessories | 3P power cord, DVI cable, USB cable, User manual | |
Dimensions
 |
