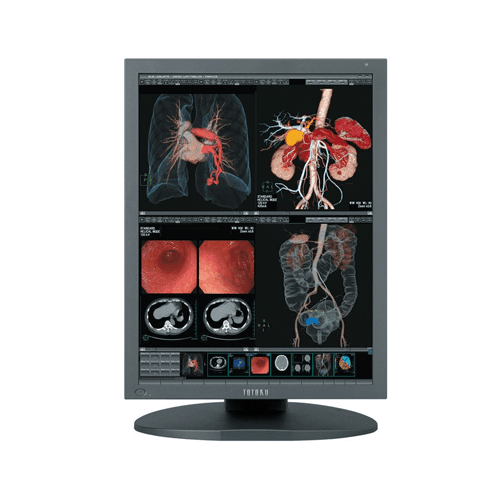

Totoku CCL356i2 3MP 21.3" Color Diagnostic Display

With high luminance and high contrast, and an integrated color calibration function, our CCL356i2 delivers highly accurate color reproduction faithful to the DICOM GSDF. The CCL356i2 includes a luminance compensation feature for edge to edge consistency, is fully configurable for multi-display applications, and comes standard with hardware-based pivot functionality for fast image drawing in portrait orientation.

PRICE REQUEST

Description

Totoku CCL356i2 3MP 21.3″ Color Diagnostic Display

Luminance stabilizing system λ-Sentinel II

λ-Sentinel II consists of a luminance sensor and luminance control circuit. The luminance sensor, integrated into the front bezel, consistently monitors and accurately stabilizes luminance on the screen by rapidly communicating with the backlight sensor.
In addition, a build-in luminance sensor provided with i2 models enables even simpler calibration without attaching the calibration sensor.



Remote grayscale check and remote calibration functions

Totoku CCL356i2 Conformance testing to DICOM GSDF and calibration can be remotely accomplished. These features minimize the burden on display administrators.

* An optional PM Medivisor software is required.


Next Generation Interface – DisplayPort

In addition to a DVI port, each i2 series display includes a new digital display interface, “DisplayPort”. When using the DisplayPort, up to 1024 or 10-bit shades of gray are simultaneously displayed. This enables smooth and accurate display of subtle dierences in shades of gray. Additionally, 1073.74 million colors (10-bit in each R, G, B) are simultaneously displayed on our color model.
*Customized viewer software and graphics card are required to
display 10-bit images.

Special AR Coating for Film-like Black and Improved Sharpness

TOTOKU’s new special AR coating technology addresses properties of focus, noise reduction, contrast, and viewing angle achieving film-like black and accurate reproduction of images. (Patent pending)

Uniformity equalizer

Is built in to achieve highly accurate luminance and color uniformity across the screen. Luminance and color unevenness are minimized in the final tune-up prior to shipping.
* Images shown are for illustrative purposes only.

High luminance, high quality LCD panel

Totoku CCL356i2 800 cd/m² and contrast ratio of 750:1. Due to its wide, dynamic range, high quality grayscale can also be achieved on this color display, providing versatility for multi-modality workstations.

MedivisorAccurate color and grayscale reproduction compliant with DICOM Part 14

By calibrating color temperature, luminance, and gamma characteristics, reproduction of colors faithful to the original and smooth display of grayscale are possible.



Built-in 16-bit LUT (look up table) for accurate grayscale reproduction

The built-in LUT selects the most appropriate 256 shades of gray (8bit) out of 16bit shades to realize finer and smoother grayscale.



Hardware pivot function for fast drawing in portrait on landscape orientation

Stress-free operation is made possible by fast drawing speed for on-the-fly change to portrait.



Dual Link input

Provides smooth display of motion pictures.

User-selectable display configurations

Luminance/gamma settings are selectable from three preset levels according to the needs. User-selectable configurations enable stress free operations without specialized settings.

OSD Information Display

At your ngertips, you can view current display status and information, including actual measurement of luminance, calibration settings, total operating hours as well as model name and serial number.

LED indicator to inform of current status

A glance at the LED indicator tells you the display’s current operating status.



Enhanced convenience with utility software

Advanced power saving*

The Totoku CCL356i2 backlight dims as the screensaver starts, reducing power consumption and preventing unnecessary deterioration of the backlight.
* This feature may not be available, depending on the specifications of the graphics card used.

Gamma check

18 points of luminance values are measured and plotted into a graph.

*Optional software Calibration Kit is required to set up the Advanced Power Savings feature and Gamma check feature.

Worldwide medical safety standards

TOTOKU medical image displays comply with various stringent worldwide medical standards. They ensure safety and reliability required for use in medical facilities.
