Sony LMDX550MT (LMD-X550MT) 55″ 4K 3D Surgical Display Monitor

  • 4K 55-inch medical monitor
  • 4K resolution 4096 x 2160 pixels
  • Quad View Mode- you can view 4 full HD images at one time
  • Variety of additional display modes- Mirror image, side-by-side, picture-in-picture, and picture -out-picture
  • LED backlight technology
  • Unique design and slender chassis
  • Sony’s unique OptiContrast Panel™ protects the edge-to-edge screen while reducing glare and reflection
  • A.I.M.E technology- Advanced Image Multiple Enhancer, unique Sony technology that allows you to adjust the view to enhance structure and color
  • Intuitive Operation and set-up
  • Easy to clean and surgically compliant, dust proof and water resistant
  • Installation and friendly cabling

Contact us directly for Volume Order Pricing and Shipping Rates. We offer special pricing and discounts on custom requirements and requests from Healthcare & Health System, Government, Purchasing Group facilities and OEM’s (Original Equipment Manufacturers).

PRICE REQUEST

Description

Sony LMDX550MT (LMD-X550MT) 55″ 4K 3D Surgical Display Monitor

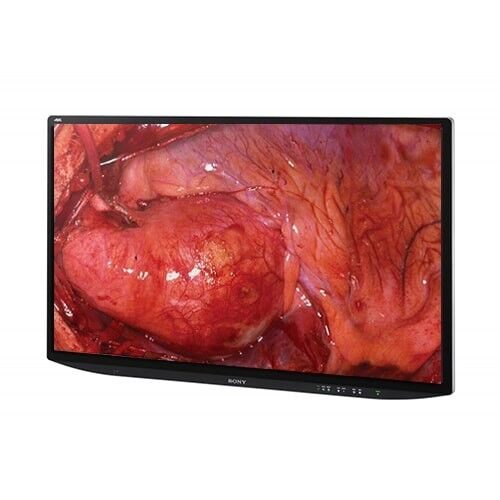

This 55-inch Sony LMDX550MT (LMD-X550MT) medical grade LCD monitor can display very high quality 3D color video images with 4K resolution from a wide range of medical imaging systems such as surgical endoscopes and laparoscopic camera systems. Its ergonomic design is optimised for environments such as Operating Rooms, surgical centers, clinics and doctors’ offices.
Offering four times the pixel count of Full HD, the Sony LMDX550MT (LMD-X550MT) provides a clearer view of fine details than conventional medical monitors. Its increased resolution also maintains picture quality when viewing zoomed images, as well as supporting multiple picture display modes for enhanced operability in the OR.
The OptiContrast Panel™ ensures clear, high contrast images by controlling light reflections and dispersion within the LCD panel. The monitor’s advanced new panel design is teamed with powerful Sony digital signal processing to provide a wider color gamut than ordinary LCD medical monitors.
Advanced Image Multiple Enhancer (A.I.M.E.™) technology can be used to accentuate subtle color differences or highlight the outline structure of displayed objects.
The Sony LMDX550MT (LMD-X550MT)  features a slim, stylish design to allow easy handling, with a narrow bezel that maximizes the compact monitor’s screen area. Flat surfaces make disinfection simpler in modern clinical environments.
Simple installation and set-up is complemented by a user-friendly control panel for positive, intuitive operation in the OR.
Note: 4K medical monitors are available in 31-inch and 55-inch sizes. At 31-inches, this screen is the largest size that will fit an endoscopy system (trolley) to provide a full 4K medium-sized panel. At 55-inches, this screen provides the ideal viewing distance when mounted in an operating theaters when installed facing the bed.

About Sony Medical

Sony Electronics Inc. is a leading provider of innovative medical products designed for use in a wide range of applications as a stand-alone hardware solution, or for incorporation into integrated medical systems. Medical imaging offerings include dry film imagers, printers, cameras, recorders and medical grade monitors for a full range of modalities.

Picture Performance

Panel a-Si TFT Active Matrix LCD
Picture Size (Diagonal) 1387.8 mm (54 3/4 inches)
Effective Picture Size (H x V) 1209.6 x 680.4 mm (47 5/8 x 26 7/8 inches)
Pixel pitch 0.315 x 0.315mm
Resolution (H x V) 3840 x 2160 pixels
Aspect 16:9
Pixel Efficiency 0.9999
Backlight LED
Panel Technology LCD with IPS
Luminance (Panel Specification) 520 cd/m2 (typical)
Contrast Ratio 1400:1
Colors Approx.1.073 billion colors
Viewing Angle (Panel Specification) 89°/89°/89°/89° (typical)
Gamma 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, Highlight
HDMI Input HDCP 1.4 correspondence
DVI-D Input DVI-D (x1) (HDCP 1.4 correspondence) TMDS single link
SDI Input BNC (x5) 3G/HD/SD-SDI
Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DVI-D Output DVI-D (x1) when HDCP disabling
SDI Output BNC (x5)
DC 5V/12V Output 5 V Output(x1), 8 W 12 V Output (x1) 20 W max

General

Power Requirements LCD monitor AC IN: 100 V - 240 V, 50/60 Hz, 3.2 A - 1.3 A
Power Consumption LCD Monitor: Approx. 290 W (max.)
Operating Temperature 0°C to 40°C (Recommended: 20°C to 30°C) 32°F to 104°F (Recommended: 68°F to 86°F)
Operating Humidity 30% to 85% (no condensation)
Storage/Transport Temperature -20°C to +60°C (-4°F to +140°F)
Storage/Transport Humidity 0% to 90%
Operating/Storage/Transport Pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) *1 1264.6 x 771.5 x 85.5 mm (Slimmest D 33.9 mm) (49 7/8 x 30 3/8 x 3 3/8 inches)
Mass Approx. 35.2 kg (Approx. 77lb 9.6oz)
Mounting 200 x 200 mm VESA 300 x 300 mm VESA
Supplied Accessories AC power cord (1) Instructions for Use (CD-ROM) (1) Abridged edition of Instructions for Use (1) AC power plug holder(2) Service Contact List(1) Warranty book (JP only) (1) M6x12mm Screw (4) 3D Eye Shield Kit: CFV-E30SK (1) Instructions for Use of the eye shield kit (1)
