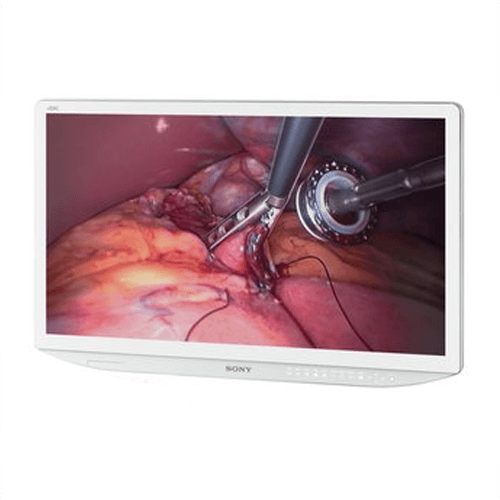

SONY LMDX310MD (LMD-X310MD) 31" 4K Medical Display Monitor

  • 4K 31-inch medical monitor
  • 4K resolution 4096 x 2160 pixels
  • Quad View Mode- you can view 4 full HD images at one time
  • Variety of additional display modes- Mirror image, side-by-side, picture-in-picture, and picture -out-picture
  • LED backlight technology
  • Unique design and slender chassis
  • Sony’s unique OptiContrast Panel™ protects the edge-to-edge screen while reducing glare and reflection
  • A.I.M.E technology- Advanced Image Multiple Enhancer, unique Sony technology that allows you to adjust the view to enhance structure and color
  • Intuitive Operation and set-up
  • Easy to clean and surgically compliant, dust proof and water resistant
  • Installation and friendly cabling
PRICE REQUEST

Description

SONY LMDX310MD (LMD-X310MD) 31″ Medical Display Monitor

This 31-inch medical grade LCD monitor can display very high quality two-dimensional colour video images with 4K resolution from a wide range of medical imaging systems such as surgical endoscopes and laparoscopic camera systems. Its ergononic design is optimised for environments such as Operating Rooms, surgical centres, clinics and doctors’ offices.
Offering four times the pixel count of Full HD, the SONY LMDX310MD (LMD-X310MD) provides a clearer view of fine details than conventional medical monitors. Its increased resolution also maintains picture quality when viewing zoomed images, as well as supporting multiple picture display modes for enhanced operability in the OR.
The OptiContrast Panel™ ensures clear, high contrast images by controlling light reflections and dispersion within the SONY LMDX310MD (LMD-X310MD)  LCD panel. The monitor’s advanced new panel design is teamed with powerful Sony digital signal processing to provide a wider colour gamut than ordinary LCD medical monitors.
Advanced Image Multiple Enhancer (A.I.M.E.™) technology can be used to accentuate subtle colour differences or highlight the outline structure of displayed objects.
The LMD-X310MD features a slim, stylish design to allow easy handling, with a narrow bezel that maximises the compact monitor’s screen area. Flat surfaces make disinfection simpler in modern clinical environments.
Simple installation and set-up is complemented by a user-friendly control panel for positive, intuitive operation in the OR.
Note: 4K medical monitors are available in 31-inch SONY LMDX310MD (LMD-X310MD) and 55-inch sizes. At 31-inches, this screen is the largest size that will fit an endoscopy system (trolley) to provide a full 4K medium-sized panel. At 55-inches, this screen provides the ideal viewing distance when mounted in an operating theatre when installed facing the bed.

About Sony Medical

Sony Electronics Inc. is a leading provider of innovative medical products designed for use in a wide range of applications as a stand-alone hardware solution, or for incorporation into integrated medical systems. Medical imaging offerings include dry film imagers, printers, cameras, recorders and medical grade monitors for a full range of modalities.

Picture Performance

Panel a-Si TFT Active Matrix LCD
Picture Size (Diagonal) 789.06 mm (31 1/8 inches)
Effective Picture Size (H x V) 698.0 x 368.1 mm (27 1/2 x 14 1/2 inches)
Pixel pitch 0.1704 x 0.1704 mm
Resolution (H x V) 4096 x 2160 pixels
Aspect 17:9
Pixel Efficiency 0.9999
Backlight LED
Panel Technology LCD with IPS
Luminance (Panel Specification) 770 cd/m2 (typical)
Contrast Ratio 1450:1
Colors Approx.1.073 billion colors
Viewing Angle (Panel Specification) 89°/89°/89°/89° (typical)
Gamma 1.8, 2.0, 2.2, 2.4, 2.6, DICOM, Highlight
HDMI Input HDMI (x1) (HDCP 1.4 correspondence)
DVI-D Input DVI-D (x1) (HDCP 1.4 correspondence) TMDS single link
SDI Input BNC (x5) 3G/HD/SD-SDI
Serial Remote (LAN) D-sub 9-pin (RS-232C) (x1), RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input XLR-type 3-pin (male) (x1), 26 V DC (output impedance 0.005 ohms or less)
DVI-D Output DVI-D (x1) when HDCP disabling
SDI Output BNC (x5)
DC 5V/12V Output 5 V Output(x1), 8 W 12 V Output (x1) 20 W max

General

Power Requirements LCD monitor - DC Input: 26 V, 6.9 A AC adaptor(AC-300MD): 245 (W) x 150 (L) x 58 (H) mm AC adaptor's AC IN: 100 V - 240 V, 50/60 Hz, 2.0A - 0.8 A
Power Consumption LCD Monitor: Approx. 180 W (max.)
Operating Temperature 0°C to 40°C (Recommended: 20°C to 30°C) 32°F to 104°F (Recommended: 68°F to 86°F)
Operating Humidity 30% to 85% (no condensation)
Storage/Transport Temperature -20°C to +60°C (-4°F to +140°F)
Storage/Transport Humidity 0% to 90%
Operating/Storage/Transport Pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) *1 753.8 x 456.4 x 69.3 mm (Slimmest D 28mm) (29 3/4 x 18 x 2 3/4 inches)
Mass Approx. 11.8 kg (Approx. 26lb 0.23oz)
Mounting 100 x 100 mm VESA 100 x 200 mm VESA
Supplied Accessories AC adaptor : AC-300MD (1) AC power cord (1) Instructions for Use (CD-ROM) (1) Abridged edition of Instructions for Use (1) AC power plug holder(2) Instructions for Use of the AC adaptor (1) Service Contact List (1) Warranty book (JP only) (1) M4x12mm Screw(4)
