Optik View DM21510 5MP 21.3" Grayscale Mammography Display

  • Expanded Color LUT
  • Color Uniformity Correction
  • Digital Uniformity Enhancement
  • Auto Luminance Stabilizer (ALS)
  • Self Calibration
  • ​​​​​​​PerfectLum
  • ​​​​​​​Dynamic Scaling
  • Adjustable Stands
  • Front Sensor
  • Ambient Sensor
  • Present Sensor
  • Fanless Design
  • ​​​​​​​DDC/CI
  • ​​​​​​​Serial RS232 Remote Control
  • Product Quality Report
PRICE REQUEST
SKU: Optik View DM21510 Categories: , , ,

Description

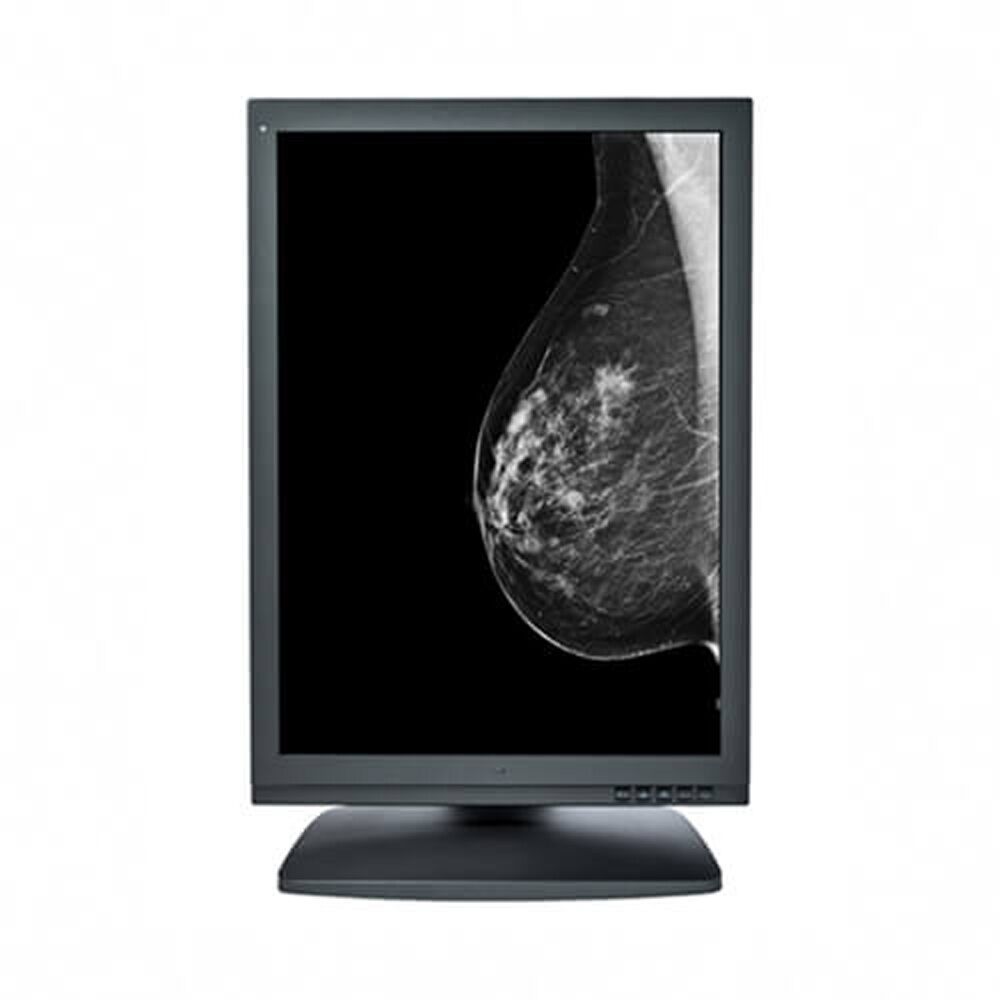

Optik View DM21510 5MP 21.3″ Grayscale Mammography Display

The Optik View DM21510 5MP Diagnostic Monochrome Display is ideally suited for the review of Mammography images. This display offers exquisite resolution to enhanced visualization of fine details. Allowing radiologists and oncologists to accurately diagnose tissue abnormalities.
Commonly used for review of Mammography images, this five megapixel monochrome diagnostic display is FDA certified and meets specifications for maximum and minimum luminance and grayscale standards defined by IEC62563-1 and DIN686-157 to improve diagnostic confidence through artifact free visualization and enhancement of subtle findings.
Radiologists and clinicians will experience improved workflow and be assured of high diagnostic quality through a one touch OSD-driven calibration and reporting function that negates the need for external calibration devices.

About Optik View

Panel spec 面板規格 Type類型 IPS
Resolution解析度 2560(H)x2048(V)
Active Screen Size 面板尺寸(inch) 21.3
Display Area可視區(mm) 422.4(H)x337.9(V)
Pixel Pitch像素(mm) 0.165(H)x0.165(V)
Viewing Angle可視角度(degree) 170(H)/170 (V)
Response Time反應時間(ms) 25 (On/Off)
Brightness亮度(nits) 1200(typ.)
Contrast Ratio對比度 1200:1(typ.)
Color色彩 Mono
Display Colors 輸出色彩(bits) 10
 I/O Interface 輸入/輸出介面 Input Termil 输入接口 DVI-D/DP1.1a/RJ45
Service Interface RS232(D-sub 9pin)
USB Hub x1 upstream &  x2 downstream
Features 產品特色 OSD Languages 菜單語言 English/Spanish/French/German/Italian/ Simple Chinese/Japan
Calibrated brightness(nits) 亮度恆定 300/400/500/600/Auto/Range
Gamma Selection 伽馬 DICOM/Calibration/1.8/2.0/2.2
Color Temp 色溫 NA
Front Sensor前端感應器 Yes
Auto Lumince Stabilization亮度稳定 Yes
Backlight sensor 背光感應器 NA
Presence Sensor 距離感應器 Yes
Ambient Sensor 環境光感應器 Yes
Uniformity Compensation亮度均勻補償 Yes
Gamma LUT Table 灰階度(bits) 18
Self Calibration 自我校正 Yes
Multi Display Mode 多顯示模式 NA
Light Box 燈箱模式 NA
Monochrome Mode 單色模式 NA
Scaling 縮放 Full/2x
Power Requirements 電源管理 Power Supply 電源種類 AC 100V~240V
Power Consumption耗電量(W) 70W(Max)/3.5W(DC Off)
Physical characteristics 外觀特色 Protection Shield 防護玻璃 NA
Dimensions(W×H×D)外觀尺寸(mm) 390.6x614.5x270(w/ Stand)
Weight重量(Kg) 12 (w/ Stand)
Tilt Range頃斜角度(degree) -5 to +20
Swivel Range旋轉角度(degree) +/- 70
Height Adjustable高度調節(mm) 80
Pivort Rotation螢幕旋轉功能(degree) 0 & 90
Mounting顯示器壁掛孔位(mm) 100x100
Reliability 可靠度 Operating Temperature 操作温度(℃) 5 to 35
Operating Humidity 操作濕度(RH) 30% to 75%
Storage Temperature 儲存温度(℃) -20 to 60
Storage Humidity 儲存温度(RH) 10% to 90%
Certifications and Compliances認證與安規 cTUVus (ANSI/AAMI ES60601-1:2005+A2(R2012)+A1; CAN/CSA C22.2 No, 60601-1:14), FCC-B, CE (IEC/EN 60601-1, IEC/EN 60601-1-2), VCCI, CCC, BSMI, FDA 510K
