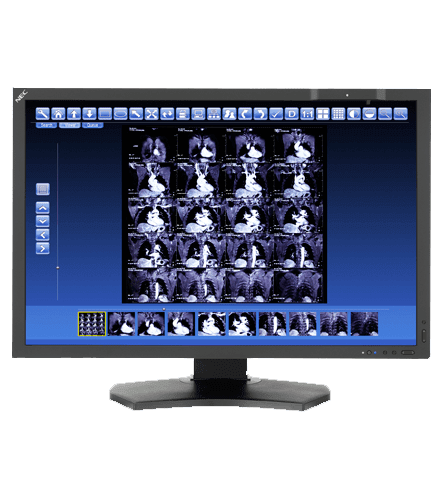

NEC MD302C4 29.8” 4MP Color Medical Diagnostic Display

  • Superior screen performance (1000:1 contrast ratio, 2560 x 1600 native resolution, 340cd/m² brightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Automatic luminance control ensures consistent brightness for the life of the display
  • 14-bit 3D internal programmable lookup tables (LUTs) enable precise calibration
  • Digital Uniformity Control provides accurate imaging across the screen
  • AmbiBright™ ambient light sensor automatically adjusts the display’s brightness based on lighting conditions
  • Wide connectivity includes DisplayPort and Mini DIsplayPort, DVI-D and HDMI inputs and 2 up/3 down USB hub with DisplaySync Pro™.
PRICE REQUEST

Description

NEC MD302C4 29.8” Color 4MP Medical Diagnostic Mid Brightness Display

The 30” NEC MD302C4, a mid-brightness medical-grade widescreen diagnostic display, is designed for the demanding needs of healthcare professionals in medical imaging and PACS. This 4MP model offers DICOM calibration, excellent uniformity, impressive dual DisplayPort connectivity and high-performance technologies. It has automatic luminance control, Picture-by-Picture mode for simultaneous dual input viewing and XtraView+ for the widest viewing angles with minimal off-angle color shift.
The NEC MD302C4 display is one of the best 4MP color diagnostic displays on the market. The quality and design of the display is on par with today’s technologies. The NEC MD302C4 is also backed with a 5 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can offer you the best solution to your needs.


About NEC Display Solutions

A wholly-owned subsidiary of NEC Corporation, NEC offers a broad selection of desktops, large-screen displays, and multimedia and digital cinema projectors, coupled with expertise in hardware/software consulting, financing, system configuration, maintenance and service/support. The result is a customized, technology-rich deployment optimized specifically to meet your company’s unique needs.
Our business is driven by innovation, advanced technologies, industry-leading service and value-add programs that help increase your productivity and let you see your digital world in a more dynamic way.

Display
Viewable Image Size 29.8"
ColorType Color
MegaPixels 4MP
Native Resolution 2560 x 1600
Pixel Pitch 0.25mm
Pixels Per Inch 101@ native resolution
Brightness (typical) 180cd/m2 calibrated / 340cd/m2 max
Contrast Ratio (typical) 1000:01
Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time 7ms
Lookup Table 14-bit (3D)
Displayable Colors 1.07 billion colors out of 4.3 trillion or 1024 shades of gray out of 4096 (10-bit DisplayPort input); 16.7 million colors out of 1.05 billion color palette or 256 shades of gray out of 4096 (DVI-D input)
Sensors
Backlight
Synchronization Range
Horizontal (Analog/Digital) 31.5-98.7 kHz (Digital only)
Vertical 30-87 Hz
Connectivity
Input/Output Terminals
Digital DisplayPort, Mini DisplayPort, HDMI, DVI-D
Power Consumption (typical)
On 87W
Power Savings Mode 1.9W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 27.1 x 18.4-24.3 x 11.9 + 0.2 in. / 688.3 x 466.4-616.4 x 301.6 + 4.8mm
Net (without stand) 27.1 x 17.6 x 3.2 + 0.2 in. / 688.0 x 446.8 x 82.0 + 4.8mm
Weight
Net Weight (with stand) 37.5 lbs. / 17.0 kg
Net Weight (without stand) 23.6 lbs / 10.7 kg
VESA Hole Configuration Specifications
100 x 100mm, 200 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 20-80%
Operating Altitude 16,404 ft. / 5000m
Storage Temperature -4-140°F / -20-60°C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Safety Standards
  • C-UL
  • EN 60601-1
  • US Mercury Regulations
  • SB50 (California)
  • WEEE
  • RoHS
  • PC Recycle
  • CCC
  • CEL Grade 2
  • AAPM-TG18
  • DIN V 6868-57
  • FDA 501(k) pending
Limited Warranty (parts & labor, including backlight)
5 years with Advanced Overnight Exchange, backlight limited to 17k hours at 180 cd/m2 and native white
Additional Features
  • DICOM GSDF calibrated
  • Digital Uniformity Correction
  • GammaComp MD QA software
  • Analog/digital CableComp
  • Pivot
  • Tilt
  • Swivel
  • Height-adjustable stand
Ships With
  • Power cord
  • DVI-DL cable
  • Mini DisplayPort to DisplayPort cable
  • Setup sheet
  • CD-ROM (GammaCompMD software)
Accessories
Optional
  • Nvidia Quadro 2000D dual PCIe video card (MDN-Q2000D)
  • AMD V5800 dual DVI PCIe video card (MDA-V5800D)
  • Matrox Xenia Pro triple-head video card (MDM-XENPRO)
  • Color calibration sensor (MDSVSENSOR2)
  • Hood (HDPA30-2)
