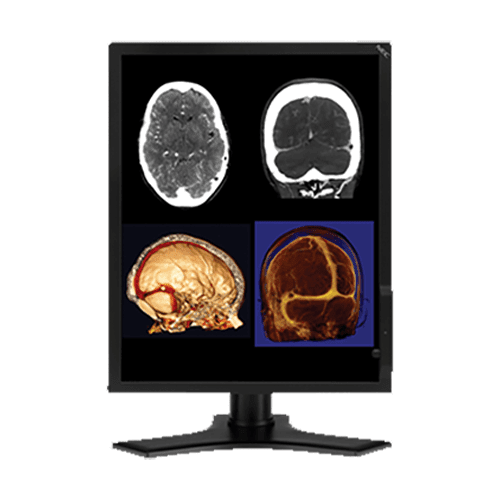

NEC MD212MC 21" Color 2MP Medical Diagnostic Monitor

  • 21.3” high-bright 2MP color LCD display ideal for color and grayscale medical imaging applications
  • UA-SFT liquid crystal technology offers high brightness without compromising contrast or viewing angles, making the image quality outstanding for color or grayscale images
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance, Integrated tri-stimulus (three-color) sensor receives more light information than standard (brightness only) sensors and, therefore, is extremely accurate and stable
  • ColorComp™ digital uniformity correction reduces screen uniformity errors and compensates for differences in color/grayscale and luminance across the entire screen
  • GammaComp™ MD software ensures consistent image quality, while providing a simple interface for conformance to the DICOM standard and an easy-to-use QA environment for medical imaging
  • 12-bit RGB lookup tables (LUTs) for gamma provide for more finely detailed, high-definition rendering of color images and crisper display of even the most delicate shadings and color differences
  • Brightness level and contrast ratio rivals that of grayscale displays
PRICE REQUEST

Description

NEC MD212MC 21″ Color 2MP Medical Diagnostic Monitor

NEC MD212MC is designed exclusively for the demanding needs of medical imaging and PACS. The NEC MD212MC, a 21.3” 2MP color display, features the flexibility of a color display with image performance rivaling that of grayscale displays.
GammaCompMD™ QA software is included with each display to ensure consistent image quality. The software provides a simple interface for conformance to the DICOM standard, while providing an easy-to-use QA environment for medical imaging. Optionally, GammaCompMD QA Network provides computer networks with centralized control and management of multiple display systems.
The MD212MC ’s design allows you to adjust the display to your exact ergonomic preferences. In addition to tilt and swivel functionality, the height adjusts up to 150mm, and the display pivots between landscape to portrait orientations.
The NEC MD212MC display is one of the best 2MP color diagnostic displays on the market. The quality and design of the display is on par with today’s technologies. NEC MD212MC is also backed with a 5 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can offer you the best solution to your needs.


About NEC Display Solutions

A wholly-owned subsidiary of NEC Corporation, NEC offers a broad selection of desktops, large-screen displays, and multimedia and digital cinema projectors, coupled with expertise in hardware/software consulting, financing, system configuration, maintenance and service/support. The result is a customized, technology-rich deployment optimized specifically to meet your company’s unique needs.
Our business is driven by innovation, advanced technologies, industry-leading service and value-add programs that help increase your productivity and let you see your digital world in a more dynamic way.

Display
Viewable Image Size 21.3"
ColorType Color
MegaPixels 2MP
Native Resolution 1600 x 1200
Pixel Pitch 0.27mm
Pixels Per Inch 94@ native resolution
Brightness (typical) 400 cd/m2 calibrated / 850 cd/m2 max
Contrast Ratio (typical) 1050:1
Viewing Angle 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
Response Time 20ms
Lookup Table 12-bit
Displayable Colors 16.7 million colors out of 68.5 billion color palette and 256 shades of gray out of 4096
Sensors
Tri-stimulus front
Synchronization Range
Horizontal (Analog/Digital) 31.5-91.1 kHz
Vertical 50-85 Hz
Input Signal
Video Analog RGB 0.7 Vp-p/75 Ohms
Sync Separate Sync: TTL Level (Positive/Negative); Composite Sync: TTL Level (Positive/Negative); Composite Sync on Green: (0.3Vp-p negative 0.7Vp-p positive)
Connectivity
Input/Output Terminals
Digital DVI-D, DVI-I, VGA 15-pin D-sub
Power Consumption (typical)
On 100W
Power Savings Mode 2W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 18.4 x 17.1-23 x 12 in. / 467.8 x 434.3-584.3 x 306mm
Net (without stand) 18.4 x 14.2 x 4.4 in. / 467.8 x 361.6 x 110.7mm
Weight
Net Weight (with stand) 23.5 lbs. / 10.7 kg
Net Weight (without stand) 16.5 lbs. / 7.5 kg
VESA Hole Configuration Specifications
100 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 30-80%
Operating Altitude 9842 ft. / 3000m
Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Safety Standards
  • C-UL
  • EN 60601-1
  • ISO 9241-307
  • ISO 13406-2
  • US Mercury Regulations
  • SB50 (California)
  • WEEE
  • RoHS
  • PC Recycle
  • Energy Star 5.0
  • CCC
  • CEL Grade 2
  • AAPM-TG18
  • DIN V 6868-57
  • FDA 501(k)
Limited Warranty (parts & labor, including backlight)
5 years, including Advanced Overnight Exchange
Additional Features
  • DICOM GSDF calibrated
  • ColorComp image uniformity correction
  • GammaComp MD QA software
  • Analog/digital CableComp
  • Pivot
  • Tilt
  • Swivel
  • Height-adjustable stand
Ships With
  • Power cord
  • DVI cable (Dual Link for several models)
  • Setup sheet
  • CD-ROM (GammaCompMD software)
Accessories
Optional
  • Nvidia dual-head video card (MDN-FX3700)
  • Matrox Xenia Pro triple-head video card (MDM-XENPRO)
  • PCI dual-head 2MP video card (MDM10B-2MP)
  • PCI dual-head 3MP video card (MDM10B-3MP)
  • Matrox dual-head 3MP video card (MDM10B-AVX3MP)
  • Realvision dual-head 5MP video card (MDRV10B-5MP)
  • Color calibration sensor (MDSVSENSOR2)
  • Protective shield (MD21PS-BK)
