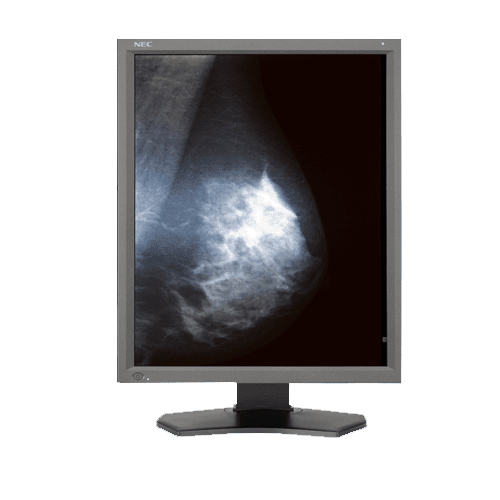

NEC MD211G5 21” Grayscale 5MP Medical Diagnostic Display with LED Backlighting (FDA 510(k) approved)

  • Superior screen performance (1200:1 contrast ratio, 2048 x 2560 native resolution, 1200 cd/m², 500 cd/m² calibratedbrightness)
  • Out-of-the-box calibration to the DICOM grayscale display function for luminance
  • Uniformity control provides accurate imaging across the screen
  • Integrated two-port USB 2.0 hub easily connects you to your peripherals
  • Includes GammaCompMD™ QA software for worry-free calibration and conformance testing to the DICOM standard
  • FDA 510(k) clearance for mammography
PRICE REQUEST

Description

NEC MD211G5 21” Grayscale 5MP Medical Diagnostic Display with LED Backlighting (FDA 510(k) approved)

The 21.3” NEC MD211G5 an LED-backlit medical-grade widescreen diagnostic display, is designed for the demanding needs of healthcare professionals in medical imaging, mammography and PACS. The NEC MD211G5 has an IPS panel to provide precise grayscale reproduction and wide viewing angles, as well as an integrated front sensor, which constantly monitor and adjust brightness to maintain the factory DICOM GSDF calibration. The NEC MD211G5 includes a has four-way ergonomic stand, including height-adjust, swivel, tilt and pivot. The display offers both DisplayPort and DVI-D inputs, built-in two-port USB hub, and 13.5-bit lookup tables (LUTs) with 1024 levels of gray for smooth images and hardware calibration.  The NEC MD211G5 display is one of the best 5MP grayscale diagnostic displays on the market. The quality and design of the display is on par with today’s technologies. The NEC MD211G5 is also backed with a 5 year warranty to give you a piece of mind in terms of quality and functionality of the product. Give us a call to discuss your requirements and so we can offer you the best solution to your needs.



About NEC Display Solutions

A wholly-owned subsidiary of NEC Corporation, NEC offers a broad selection of desktops, large-screen displays, and multimedia and digital cinema projectors, coupled with expertise in hardware/software consulting, financing, system configuration, maintenance and service/support. The result is a customized, technology-rich deployment optimized specifically to meet your company’s unique needs.
Our business is driven by innovation, advanced technologies, industry-leading service and value-add programs that help increase your productivity and let you see your digital world in a more dynamic way.

Display
Viewable Image Size 21.3"
ColorType Grayscale
MegaPixels 5MP
Native Resolution 2048 x 2560
Pixel Pitch 0.17mm
Pixels Per Inch 154@ native resolution
Brightness (typical) 500 cd/m2 calibrated / 1200 cd/m2 max
Contrast Ratio (typical) 1200:1
Viewing Angle 176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>50
Response Time 25ms
Lookup Table 13.5-bit
Displayable Colors 1024 levels of gray out of a palette of 12277
Synchronization Range
Horizontal (Analog/Digital) 30-135 kHz
Vertical 25-75 Hz
Connectivity
Input/Output Terminals
Digital DisplayPort, DVI-D
Power Consumption (typical)
On 80W
Power Savings Mode 7W
Physical Specifications
Dimensions (WxHxD)
Net (with stand) 18.7 x 15.9-21.3 x 9 in. / 474.5 x 403.3-541.8 x 227.6mm
Net (without stand) 18.7 x 15.4 x 3.9 in. / 474.5 x 390 x 98.2mm
Weight
Net Weight (with stand) 26 lbs. / 11.8 kg
Net Weight (without stand) 19.0 lbs. / 8.6 kg
VESA Hole Configuration Specifications
100 x 100mm
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 30-80%
Operating Altitude 9842 ft. / 3000m
Storage Temperature -4-140°F / -20-60°C
Storage Humidity 10-85%
Storage Altitude 32,808 ft. / 10,000m
Safety Standards
  • C-UL
  • EN 60601-1
  • ISO 9241-307
  • ISO 13406-2
  • US Mercury Regulations
  • WEEE
  • RoHS
  • AAPM-TG18
  • DIN V 6868-57
  • FDA 501(k)
Limited Warranty (parts & labor, including backlight)
5 years, including Advanced Overnight Exchange
Additional Features
  • DICOM GSDF calibrated
  • Digital Uniformity Correction
  • Pivot
  • Tilt
  • Swivel
  • Height-adjustable stand
Ships With
  • Power cord
  • DisplayPort cable
  • DVI-D Dual Link cable
  • USB A to B cable
  • Warranty sheet
  • Caution sheet
Accessories
Optional AMD triple-head video card (MDA-W5000), NVIDIA triple-head video card (MDN-K2000), NVIDIA dual-head video card (MDN-Q2000D), AMD dual-head video card (MDA-V5800D), Matrox triple-head video card (MDM-XENPRO), Medical calibration sensor (MDSVSENSOR2), Medical calibration sensor (MDSVSENSOR3)
