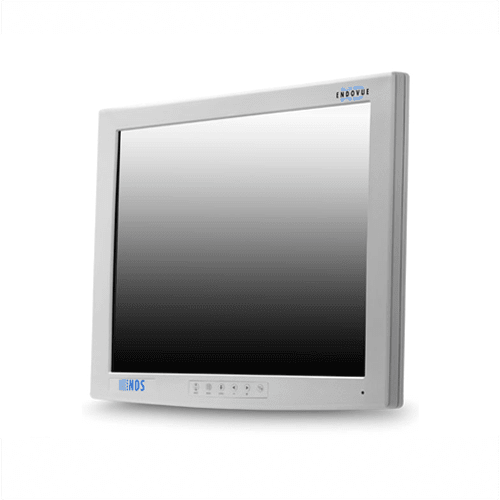

NDS 19" EndoVue HD LED Surgical Display (90K0051)

  • HD imaging compatible
  • Fastest response time (18ms)
  • Lightweight, compact, robust, highly maneuverable
  • Programmable user and modality preferences
  • Re-drive capability enables image viewing on multiple displays
  • Video-switching with serial port interface
  • Safe low voltage 24V DC remote power
  • Flexible standard VESA mounting options
  • Fanless cooling for use in sterile field
PRICE REQUEST

Description

NDS 19″ EndoVue HD LED Surgical Display (90K0051)

The EndoVue product line is a medical visualization system capable of displaying multiple image modalities and designed for minimally invasive surgery. The NDS 19″ EndoVue HD LED Surgical Display (90K0051) has a robust, lightweight, flexible input design enabling easy physical installation, while proprietary factory color-calibration ensures reliable, consistent, realistic image reproduction instantly. NDS 19″ EndoVue HD LED Surgical Display (90K0051) offers high-definition, featuring high brightness, high resolution, exceptional contrast, and true color reproduction with unsurpassed quality image.
For the medical professional seeking to maximize their capital investment and upgrade their aging monitor, the EndoVue® series delivers the image performance of a high-end endoscopy display at a value price.
EndoVue is a versatile visualization platform, supporting multi-modality medical imaging requirements. It is plug-and-play compatible with endoscopic camera systems from leading manufacturers. Designed and built for medical use, it is FDA listed, TUV certified, and CE marked, offering patient safety, clinical performance,
and durability compared to non-medical grade displays.
The NDS 19″ EndoVue HD LED Surgical Display (90K0051) accommodates standard analog and digital high-definition signals from a variety of medical imaging sources, including ultrasound, PACS,and patient monitor vital signs. It features a fanless cooling design to minimize the risk of spreading airborne contaminants within the sterile field, and industry leading LED backlight technology for reduced power consumption.
EndoVue 19
90K0050 EndoVue 19” – North America
90K0051 EndoVue 19” – South America
90K0052 EndoVue 19” – Japan
90K0053 EndoVue 19” – China
90K0054 EndoVue 19” – Emerging Market**
90K0055 EndoVue 19” – Europe



SPECIFICATIONS


Screen Size 19” diagonal


Image Size 14.8” x 11.9” /376 x 301 mm (WxH)


Resolution 1280 x 1024


Aspect Ratio 5:4


View Angle 178°


Luminance 250 cd/m2 typical


Contrast Ratio 1,000:1 (typical)


Numbers of Colors 16.7 Million (8-bit)


Response Time 18ms


Latency 20ms


Video Inputs DVI-D, RGBS/VGA/YPbPr (HD-15 or DVI-I via adapter), S-Video, Composite


Video Output DVI-D


Warranty 1 Year standard, optional extended 1 year


Dimensions 17.5” x 14.7” x 2.8”/445 x 374 x 70 mm (WxHxD)


Weight 10.7 lbs/4.9 kg


Shipping Weight* 17 lbs/7.7 kg


Shipping Dimensions 22” x 8” x 21”/56 x 21 x 54 cm


Green Compliance REACH, RoHS-2, WEEE, Conflict Minerals


Regulatory Compliance ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, CAN ICES-3(B)/ NMB-3(B), FCC Class B, EN60601-1, EN60601-1-2, CE, MDD 93/42/EEC, CCC, FDA Class I Medical Device


Supplied Accessories Power Supply, 100-240 VAC, 50-60 Hz to 24 VDC, 2.7 A


AC power cord, region appropriate


User Manual – English with multi-language CD-ROM


ORDER INFORMATION EndoVue 19
90K0050 EndoVue 19” - North America
90K0051 EndoVue 19” - South America
90K0052 EndoVue 19” - Japan
90K0053 EndoVue 19” - China
90K0054 EndoVue 19” - Emerging Market**
90K0055 EndoVue 19” - Europe
OPTIONAL ACCESSORIES 26B0102 Display Stand - 19”, 21”, 24”
35X0100 Fiber Converter 5 VDC Power Cable
73A1013 EndoVue 19” Extended 1 Year Warranty
**Emerging Market model eligible countries (non-eligible countries will void the warranty)
Bahrain | Bangladesh | Botswana | Bulgaria | Côte d’Ivoire | Croatia | Cyprus | Czech Republic | Egypt | Estonia | Ghana | Hungary | India | Indonesia | Jordan | Kenya | Lithuania | Macedonia | Malaysia | Malta | Mauritius | Morocco | Nigeria | Oman | Pakistan | Philippines | Poland | Qatar | Romania | Russia | Serbia | Slovakia | Slovenia | South Africa | Sri Lanka Taiwan | Thailand | Tunisia | Turkey | UAE | Vietnam
