NDS 21" EndoVue HD LED Surgical Display (90K0060)

  • HD imaging compatible
  • Fastest response time (18ms)
  • Lightweight, compact, robust, highly maneuverable
  • Programmable user and modality preferences
  • Re-drive capability enables image viewing on multiple displays
  • Video-switching with serial port interface
  • Safe low voltage 24V DC remote power
  • Flexible standard VESA mounting options
  • Fanless cooling for use in sterile field
PRICE REQUEST

Description

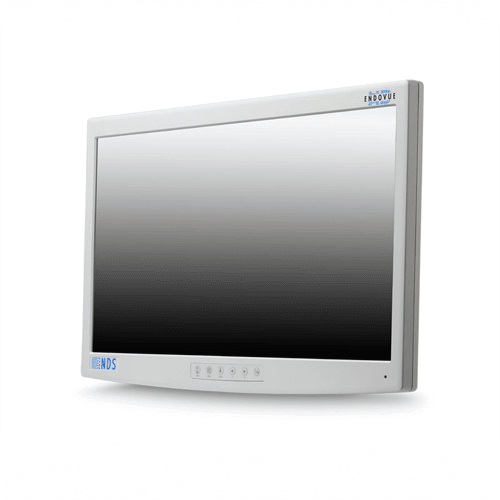

NDS 21″ EndoVue HD LED Surgical Display (90K0060)

The EndoVue product line is a medical visualization system capable of displaying multiple image modalities and designed for minimally invasive surgery. The NDS 21″ EndoVue HD LED Surgical Display (90K0060) has a robust, lightweight, flexible input design enabling easy physical installation, while proprietary factory color-calibration ensures reliable, consistent, realistic image reproduction instantly. NDS 21″ EndoVue HD LED Surgical Display (90K0060) offers high-definition, featuring high brightness, high resolution, exceptional contrast, and true color reproduction with unsurpassed quality image.
For the medical professional seeking to maximize their capital investment and upgrade their aging monitor, the EndoVue® series delivers the image performance of a high-end endoscopy display at a value price.
EndoVue is a versatile visualization platform, supporting multi-modality medical imaging requirements. It is plug-and-play compatible with endoscopic camera systems from leading manufacturers. Designed and built for medical use, it is FDA listed, TUV certified, and CE marked, offering patient safety, clinical performance,
and durability compared to non-medical grade displays.
The NDS 21″ EndoVue HD LED Surgical Display (90K0060) accommodates standard analog and digital high-definition signals from a variety of medical imaging sources, including ultrasound, PACS,and patient monitor vital signs. It features a fanless cooling design to minimize the risk of spreading airborne contaminants within the sterile field, and industry leading LED backlight technology for reduced power consumption.
EndoVue 21
90K0060 EndoVue 21” – North America
90K0061 EndoVue 21” – South America
90K0062 EndoVue 21” – Japan
90K0063 EndoVue 21” – China
90K0064 EndoVue 21” – Emerging Market**
90K0065 EndoVue 21” – Europe



SPECIFICATIONS


Screen Size 21.5” diagonal


Image Size 18.8” x 10.6”/477 x 268 mm (WxH)


Resolution 1920 x 1080


Aspect Ratio 16:9


View Angle 178°


Luminance 250 cd/m2 typical


Contrast Ratio 1,000:1 (typical)


Numbers of Colors 16.7 Million (8-bit)


Response Time 14ms


Latency 20ms


Video Inputs DVI-D, RGBS/VGA/YPbPr (HD-15 or DVI-I via adapter), S-Video, Composite


Video Output DVI-D


Warranty 1 Year standard, optional extended 1 year


Dimensions 20.2” x 13.3” x 2.8”/514 x 339 x 70 mm (WxHxD)


Weight 12.5 lbs/5.7 kg


Shipping Weight* 19 lbs/8.6 kg


Shipping Dimensions 25” x 8” x 20”/64 x 21 x 51 cm


Green Compliance REACH, RoHS-2, WEEE, Conflict Minerals


Regulatory Compliance ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, CAN ICES-3(B)/ NMB-3(B), FCC Class B, EN60601-1, EN60601-1-2, CE, MDD 93/42/EEC, CCC, EAC, Class I Medical Device


Supplied Accessories Power Supply, 100-240 VAC, 50-60 Hz to 24 VDC, 2.7 A


AC power cord, region appropriate


User Manual – English with multi-language CD-ROM


ORDER INFORMATION


EndoVue 21


90K0060 EndoVue 21” - North America


90K0061 EndoVue 21” - South America


90K0062 EndoVue 21” - Japan


90K0063 EndoVue 21” - China


90K0064 EndoVue 21” - Emerging Market**


OPTIONAL ACCESSORIES


26B0102 Display Stand - 19”, 21”, 24”


35X0100 Fiber Converter 5 VDC Power Cable


73A1014 EndoVue 21” Extended 1 Year Warranty


**Emerging Market model eligible countries (non-eligible countries will void the warranty) Bahrain | Bangladesh | Botswana | Bulgaria | Côte d’Ivoire | Croatia | Cyprus | Czech Republic | Egypt | Estonia | Ghana | Hungary | India | Indonesia | Jordan | Kenya | Lithuania | Macedonia | Malaysia | Malta | Mauritius | Morocco | Nigeria | Oman | Pakistan | Philippines | Poland | Qatar | Romania | Russia | Serbia | Slovakia | Slovenia | South Africa | Sri Lanka Taiwan | Thailand | Tunisia | Turkey | UAE | Vietnam
