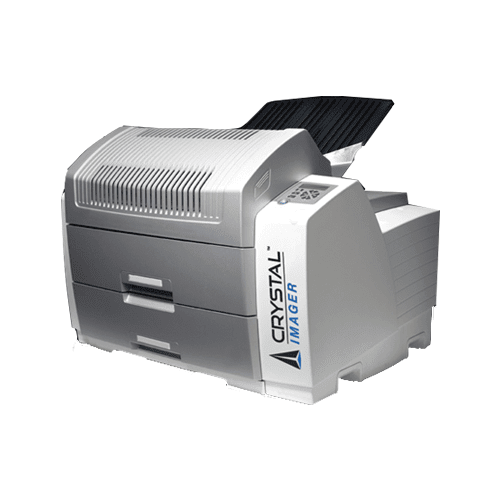

iCRco Crystal Imager Two-Tray DICOM Imager

Crystal Clear Images

  • Excellent Reliability, Minimum Maintenance
  • Direct Digital Imaging Technology
  • Convenient Imaging With Two Media Sizes On-Line
PRICE REQUEST
SKU: iCRco Crystal Imager Categories: , , ,

Description

iCRco Crystal Imager Two-Tray DICOM Imager

Easy Connectivity for Maximum Flexibility iCRco Crystal Imager is a DICOM imager, that makes network connectivity easy. Two Media Sizes On-line Despite its compact size, iCRco Crystal Imagerfeatures two media sizes on-line, with four media sizes available. The imager thus offers enhanced flexibility and convenience, as it is not necessary to constantly load a new media format for different image sizes. With its ultra-short access time for the first film and its throughput of 75 sheets per hour (14 x 17 inch), iCRco Crystal Imager offers versatility and improved workflow for almost all radiology applications. Next-to-Application Imaging The unit’s small footprint means that convenient, next-to-application installation is possible in even the most space-restricted environments. iCRco Crystal Imager freedom of placement, combined with its low investment and running costs, makes it the perfect match for any modality. A total, one-stop imaging solution through its intelligent matching of Direct Digital Imaging technology, media and imager, Crystal Imager is designed to stand at the heart of iCRco’s integrated solutions. Combined with state-of-the-art Crystal Imager media, diagnostic quality greyscale hardcopies of the highest standard are delivered time after time. Because it is heat-sensitive rather than light-sensitive, Crystal Imager brings the added convenience of daylight loading.

About iCRco

* GENERAL SPECIFICATIONS

Dimensions (W x D x H)

  • Centimeters: 72.8 x 71.5 x 53.6 (Height with Output Tray = 67.6 cm)
  • Inches: 28.7 x 28.1 x 21.1 (Height with Output Tray = 26.6 inches)

Weight (Without Film)

  • 90 kg (198)

Power Requirements

  • Auto ranging 100-240 V: 50/60 Hz

Power Consumption

  • Printing: 250 Watt
  • Peak: 530 Watt
  • Standby:70 Watt

Capacity of Supply Tray

  • 100 sheets per supply tray

Operating Conditions

  • Temperature: 15-30 °C (59-86 °F)
  • Humidity: 20-75% RH, non condensing

Storage/Shipping Conditions

  • Temperature: -25 to +55 ºC (-13 to 131 ºF) -40 to +70 ºC for transport (-40 to 158 ºF)
  • Humidity: 10-95% RH, non condensing

Heat generation

  • Standby power: 70 Watt
  • Average printing power: 250 Watt
  • Peak Power: 530 Watt

Safety

  • IEC 60601-1 • UL 60601-1 • CSA 22.2, Nr. 601.1 - M90 • VDE 0750
  • Safety labels: UL, cUL, TÜV-Mark
